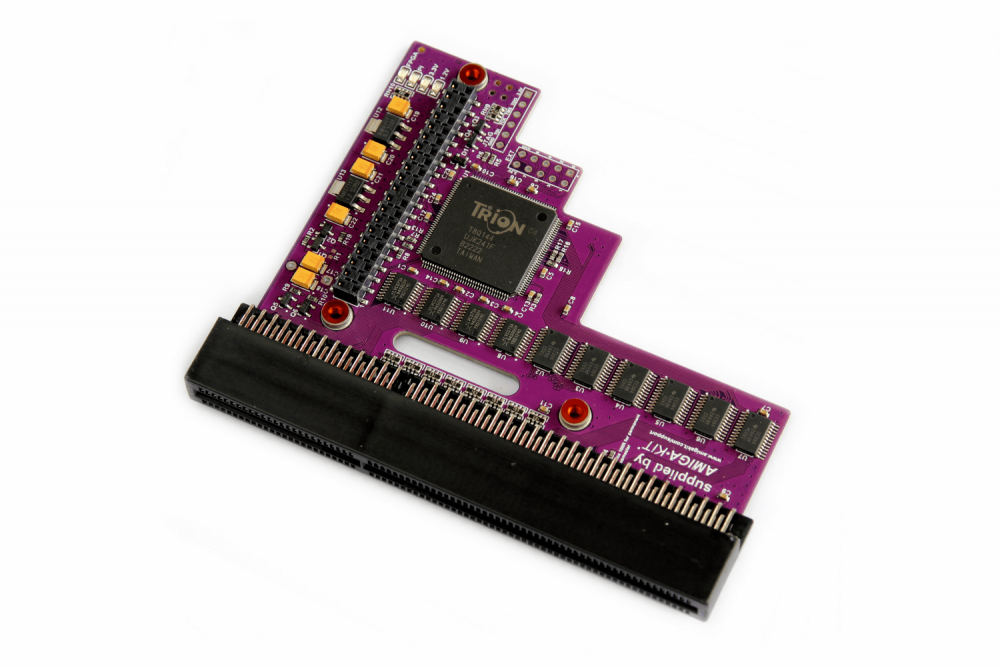

PiStorm32 Lite adapter for Amiga 1200

PiStorm32 Lite is an adapter to use a Raspberry Pi as a processor accelerator, RTG graphics card and as a hard disk interface on the Amiga 1200. A Raspberry Pi is absolutely necessary for operation, but is not included in the standard package. However, it can be ordered as an option (selectable above). Pistorm32 Lite is compatible with the Raspberry Pi 3A+, Raspberry Pi 3B (modification required), and Raspberry Pi 4B.

In addition, the package contains a thermal pad, 3 screws and 3 spacers for mounting and a protective cover for the contacts of the Raspberry Pi on the top.

Features

• Fully Amiga 1200 compatible
• 68040 and with up to 2000 MIPS acceleration with a Raspberry 4.
• RTG graphics card output with high resolution modes via HDMI.
• WLAN card to connect the Amiga to the internet or a LAN (not yet implemented)
• Available in 3 board colours: green, black and purple (selectable above)

Requirements

• Amiga 1200 computer
• Raspberry 3A+, 3B, or 4B (model 3A+ and 4B selectable above)
• SD card
• Michal Schulz Emu68 software
• AmigaOS 3.1 or higher

Contents

• PiStorm32 Lite for Amiga 1200
• Thermal pads
• 3 x spacers
• 3 x screws
• Cover for the pins of the Raspberry, to avoid contact with the A1200 keyboard and a resulting short circuit

Optional

• Compatible Raspberry Pi 3 model A+, see picture 5 (selectable above)
• Preconfigured 32 GB SD card with licensed AmigaOS 3.2 can be ordered optionally (available in a few days)
